Volkswagen Golf Service & Repair Manual: Removing and installing high-level brake light, GTI, GTD and »R«

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / High-level brake light / Removing and installing high-level brake light, GTI, GTD and »R«

Removing:
–  Remove roof spoiler → General body repairs, exterior; Rep. gr.66.

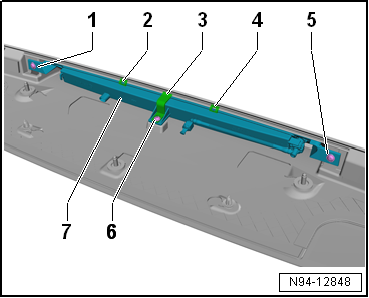

–  Unscrew bolts -1-, -5- and -6- from high-level brake light -7-.
–  Carefully lift catches -2- and -4- to release.
–  Slightly lift support bracket -3-.
–  Remove high-level brake light -7- from roof spoiler.
Installing:
Install in the reverse order of removal, observing the following:
  Note
When installing high-level brake light, make sure seal is correctly seated. The seal must not form loops or be damaged.
–  Check high-level brake light bulb -M25- and rear window washer system for fault-free function.
Specified torques
→ Chapter „Assembly overview – high-level brake light, GTI, GTD and R“
