Volkswagen Golf Service & Repair Manual: Description of battery charger -VAS 5095 A-
| The battery charger -VAS 5095- is suitable for charging all
12V batteries supplied by Volkswagen. |
| The battery charger charges without peaks in amperage or
voltage. This will not adversely effect the onboard electronics.
The battery can remain in the vehicle while it is being charged
and need not be disconnected. |
|
|
|

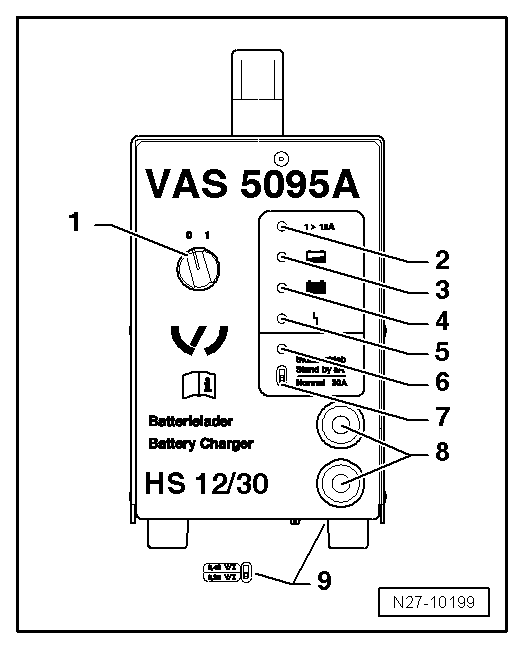

| Battery charger -VAS 5095 A- |
| 1 - |
ON / OFF switch (0 = charger OFF) |
| 2 - |
Charge current indicator (I > 12 A) |
| 3 - |
Charge current indicator, battery partially charged > 90% |
| 4 - |
Maintaining charge; lights up green when battery is fully
charged |
| 5 - |
Malfunction indicator |
| 6 - |
Support mode indicator |
| 7 - |
Support mode/normal mode changer-over switch |
| 8 - |
Charger cable, red terminal “+”, black terminal “-” |
| 9 - |
Battery type change-over switch (on base of charger unit) |
|
|
|
WARNING
Danger of injury! Observe warning notices and safety
regulations
→ Chapter!
...
WARNING
Danger of injury! Observe warning notices and safety
regulations
→ Chapter!
...
