Volkswagen Golf Service & Repair Manual: Removing and installing fuse holder B -SB-

Removing
–  With ignition switched off, disconnect earth cable from battery → Chapter.

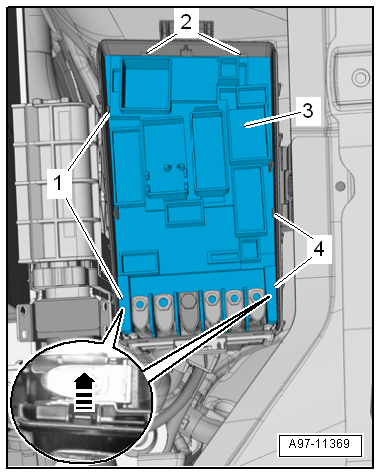

–  Press release tabs -arrow- and detach cover -1- for electronics box (engine compartment).


Removing and installing fuse holder B -SB-

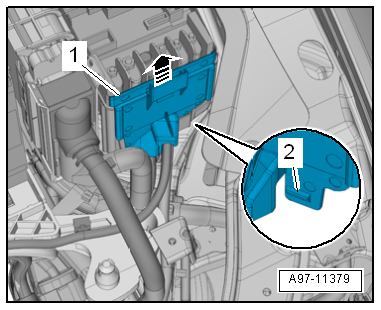

–  Release retaining tab -2- using a screwdriver and pull off front cover -1- upwards -arrow-.


Removing and installing fuse holder B -SB-

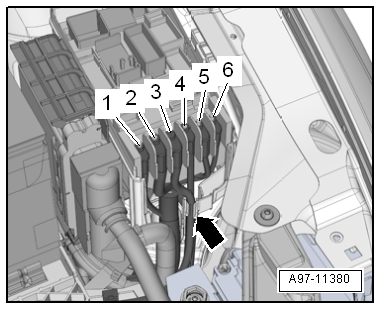

–  Mark allocation of electrical wiring at threaded connections for reinstallation.
–  Unscrew nuts -1, 2, 4, 5 and 6-.
–  Remove bolt -3-.
–  Move electrical wiring clear -arrow-.


Removing and installing fuse holder B -SB-

–  Cut through cable tie (bottom) on wiring harness.

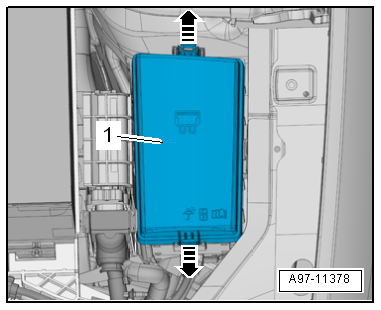

–  Release fasteners -1, 2 and 4--arrow-, remove fuse holder B -3- and lay to one side.
Installing
Install in the reverse order of removal, observing the following:
–  Fit and secure electrical wiring to fuse holder A according to markings made earlier.
–  Connect battery → Chapter.
Specified torques
→ Chapter „Overview of fitting locations – relay carriers, fuse holders, electronics boxes“


Removing and installing fuse holder B -SB-
