Volkswagen Golf Service & Repair Manual: Removing and installing fuse holder A -SA-

Volkswagen Golf Service & Repair Manual / Electrical system / Wiring / Relay carriers, fuse holders, electronics boxes / Removing and installing fuse holder A -SA-

Removing

–	Remove fuse holder B → Chapter.

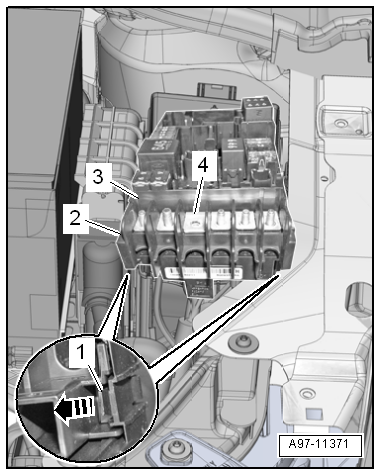

–	Take securing bar -4- out of fuse holder B upwards.

–	Release retaining tab -1--arrow- and remove fuse holder A -2- downwards from fuse holder B -3-.

Installing

Installation is carried out in the reverse sequence.
