Volkswagen Golf Service & Repair Manual: Removing and installing driver side footwell vents, RHD vehicles

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Air duct / Removing and installing driver side footwell vents, RHD vehicles

Removing
Pyrotechnic components may trigger unintentionally.Risk of injury.Discharge any static charge accumulated in your body by briefly touching striker plate for door.
–  Remove driver side knee airbag → General body repairs, interior; Rep. gr.69.

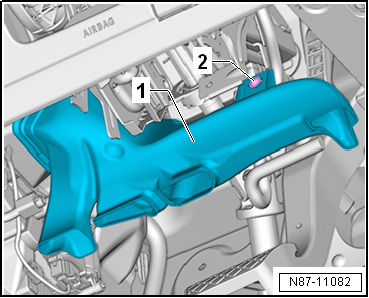

–  Remove bolt -2-.
–  Remove footwell vent on driver side -1-.
Installing
–  Install in reverse order.
Specified torques:


Removing and installing driver side footwell vents, RHD vehicles

Component Specified torque
Self-tapping screw 4.2 x 16 1.5 Nm

Knee airbags; Assembly overview - knee airbag → General body repairs, interior; Rep. gr.69.

Removing and installing driver side footwell vents, LHD vehicles
Removing Pyrotechnic components may trigger unintentionally.Risk of injury.Discharge any static charge accumulated in your body by briefly touching striker pl ...

Removing and installing rear footwell vent
  Note The illustration shows a left-hand drive vehicle. The removal and installation procedure is identical for both sides. Removing ...
