Removing
Fitting location → Item:

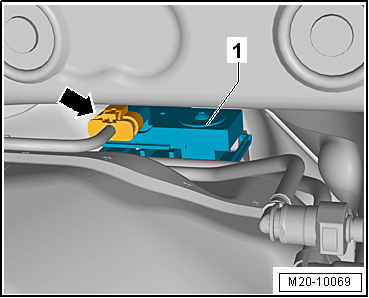

–  Release and pull off connector -arrow- on control unit for fuel tank leak detection -J909--1-.


Removing and installing control unit for fuel tank leak detection -J909-

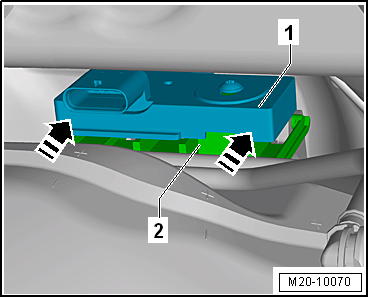

–  Push control unit for fuel tank leak detection -J909--1- on both sides evenly upwards -arrows-, until the catch can be heard to disengage.
–  Remove control unit for fuel tank leak detection -J909--1- from bracket -2-.
Installing
Install in reverse order. In the process, note the following:

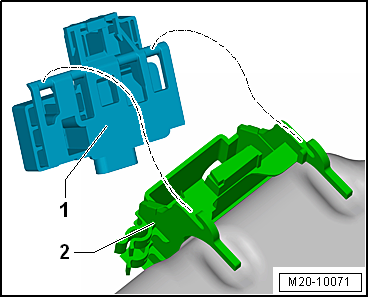

Removing and installing control unit for fuel tank leak detection -J909-

–  Fit control unit for fuel tank leak detection -J909--1- properly in mounting -2-.
–  Pull control unit for fuel tank leak detection -J909- evenly downwards until it can be heard to engage.
