Volkswagen Golf Service & Repair Manual: Removing and installing cigarette lighter illumination bulb -L28-
 Note
| On some vehicles, the illumination is not provided by a
light bulb, but by an LED (light-emitting diode), depending on
the equipment level. This LED is permanently attached to the
retaining sleeve and cannot be renewed separately. |
| Retaining sleeves with a light bulb are available in
different versions. On the one version, the light bulb can be
replaced separately; on the other version, the light bulb cannot
be replaced separately. In this case, the bulb carrier has to be
replaced together with the light bulb. |
| – |
Remove socket
→ Chapter. |
|
|
|
| – |

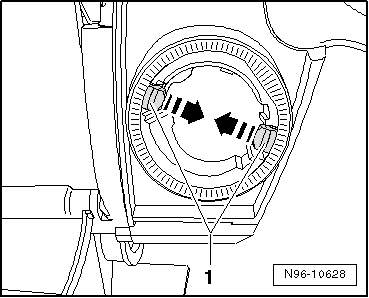

Press retaining lugs -arrows-
and remove retaining sleeve together with bulb carrier. |
| – |
Unclip bulb carrier from retaining sleeve. |
|
|
|
| – |

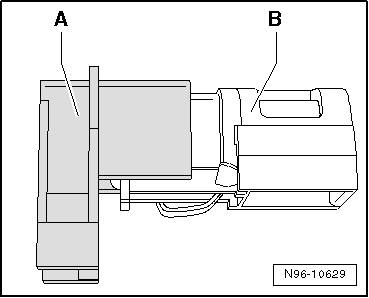

Separate bulb carrier in areas -A-
and -B-. |
| – |

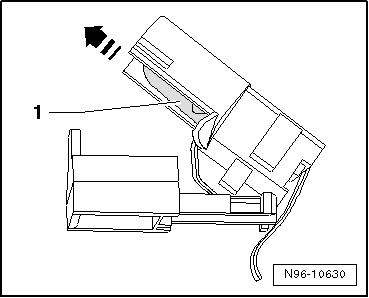

Open part -B- of bulb carrier. |
|
|
|
| – |
Remove light bulb in direction of
-arrow-. |
| Install in reverse order of removal. |
|
|
|
Note
The removal and installation procedure is the same for all
sockets and is therefore described here only for the cigarette
lighter socket.
...
