Volkswagen Golf Service & Repair Manual: Removing and installing centre console retainer, securing bracket and insulation for selector mechanism, e-Golf only

Volkswagen Golf Service & Repair Manual / General body repairs, interior / Interion equipment / Centre console / Removing and installing centre console retainer, securing bracket and insulation for selector mechanism, e-Golf only

Special tools and workshop equipment required

  Torque wrench -V.A.G 1783-
Removing
Front bracket
  Note
Removal and installation is described for the front bracket on the driver side. Follow same instructions for the front passenger side as appropriate.
–  Remove centre console trim in footwell on driver side → Chapter.


Torque wrench -V.A.G 1783

–  Push floor covering in area of front bracket -2- aside.
–  Release cover -1- from front bracket -2- and remove it.
–  Remove front bracket -2- upwards from tunnel -3-.
Securing bracket and insulation for selector mechanism
–  Remove centre console → Chapter.


Torque wrench -V.A.G 1783

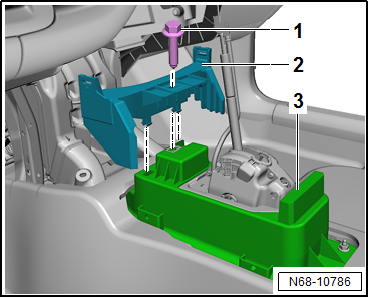

–  Remove bolt -1-.
–  Remove securing bracket -2- upwards from selector mechanism insulation -3-.
–  Remove air duct vent at rear of centre console → Heating, air conditioning; Rep. gr.87.


Torque wrench -V.A.G 1783

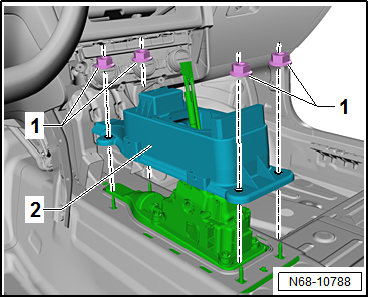

–  Remove 4 nuts -1-.
–  Remove selector mechanism insulation -2-.
Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
Installation is carried out in reverse order.
Specified torques
  → Chapter „Assembly overview - centre console, e-Golf“


Torque wrench -V.A.G 1783

Removing and installing centre console retainer, for all vehicles except e-Golf
