Special tools and workshop equipment required

Removing

Torque wrench -V.A.G 1331-

Removing and installing bonnet

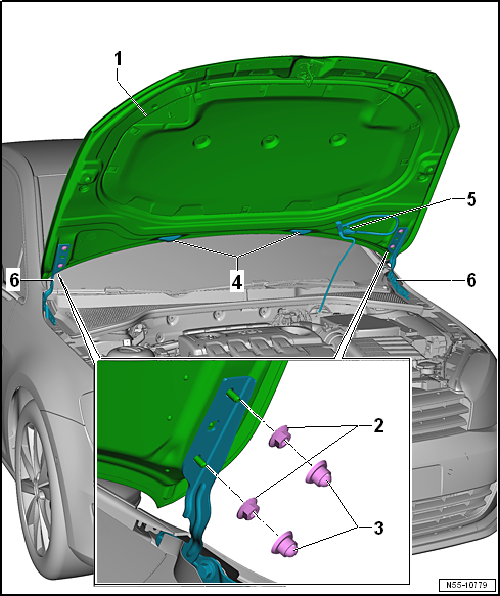

–	Remove spray jets -4- → Electrical system; Rep. gr.92.

–	Pull line -5- out of opening in bonnet -1-.

–	If fitted, remove caps -3-.

–	Loosen hexagon nuts -2- on left and right hinge -6- (do not remove).

Further dismantling requires the assistance of a second mechanic.

–	Remove gas strut.

–	Now, unscrew and remove hexagon nuts -2- and lift bonnet -1- out of hinges -6-.

Installing

Removing and installing bonnet

Installation of bonnet -1- is carried out accordingly in reverse order of removal.

Note

Install the line -5- in a curve. If line is installed twisted it will kink.

–	Adjusting bonnet -1- → Chapter.

Specified torques

Hexagon nuts → Chapter „Assembly overview - bonnet“

Assembly overview - Bowden cable

1 - Release lever Removing and installing → Chapter 2 - Bolt Qty. 2 1.5 Nm 3 - Mo ...

Adjusting bonnet

Adjusting bonnet Special tools and workshop equipment required ...
