Volkswagen Golf Service & Repair Manual: Removing and installing baffle plate, LHD vehicles

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Air conditioner / Front heater and air conditioning unit / Removing and installing baffle plate, LHD vehicles

Removing

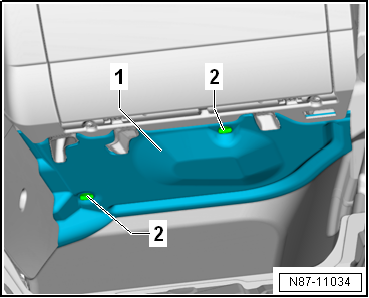

–	Depending on version, remove plastic bolt or plug -2- and remove baffle plate -1-.

Installing

–	Install in reverse order.

Note

Always replace plugs with plastic bolts → Electronic Parts Catalogue.

Specified torques:

Bolts -2- → Item.
