Volkswagen Golf Service & Repair Manual: Removing and installing retainer for aerial amplifier for mobile telephone -R86-

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Telephone system / Removing and installing retainer for aerial amplifier for mobile telephone -R86-

Removing

–	Removing aerial amplifier for mobile telephone -R86- → Chapter.

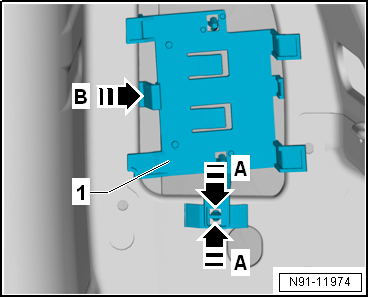

–	Push locking tabs in direction of arrow -A-.

–	Remove retainer for aerial amplifier for mobile telephone -R86--1- out of mounting (bottom).

–	Push metal tab in direction of arrow -B-.

–	Remove retainer for aerial amplifier for mobile telephone -R86--1- out of side panel.

Installing

Installation is carried out in reverse order of removal.
