Removing

–	Observe safety instructions → Chapter.

–	Observe rules for cleanliness → Chapter.

–	Remove rear right wheel → Running gear, axles, steering; Rep. gr.44.

–	Remove rear right wheel housing liner → General body repairs, exterior; Rep. gr.66.

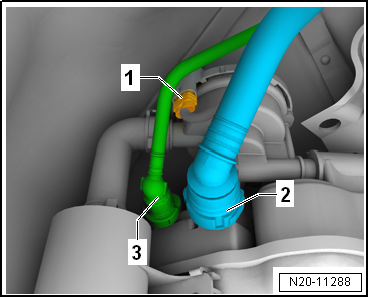

–	Release and pull off connector -1-.

–	Pull breather lines -2- and -3- off activated charcoal filter.

Removing and installing activated charcoal filter

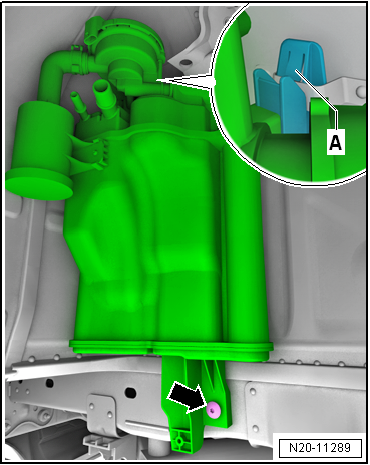

–	Undo bolt -arrow-.

–	Using a screwdriver, press catch -A- slightly in direction of luggage compartment.

–	Pull activated charcoal filter downwards out of guide bar and remove it.

Installing

Installation is performed in the reverse order of removal. In the process, note the following:

Push on breather lines until they engage audibly.

Specified torques

→ Chapter „Assembly overview - activated charcoal filter system“

Wheel housing liner → General body repairs, exterior; Rep. gr.66

Wheels → Running gear, axles, steering; Rep. gr.44.
