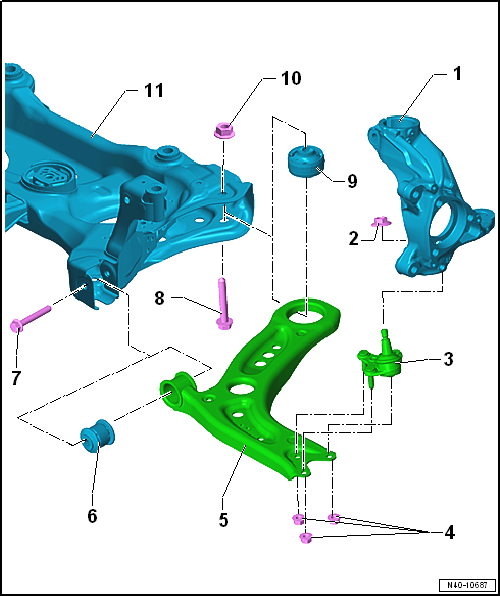

Assembly overview - lower suspension link, swivel joint

1 -	Wheel bearing housing

Different versions possible. Refer to → Electronic Parts Catalogue “ETKA”

Removing and installing → Chapter

2 -

Nut

Renew after removing

60 Nm

3 -	Swivel joint

Removing and installing → Chapter

4 -

Nut

Renew after removing

Tighten in unladen position → Chapter.

40 Nm +45°

5 -	Lower suspension link

Removing and installing → Chapter

6 -	Front bonded rubber bush

Renewing → Chapter.

7 -

Bolt

Renew after removing

Tighten in unladen position → Chapter.

70 Nm +180°

8 -

Bolt

Renew after removing

70 Nm +180°

9 -	Rear bonded rubber bush

Renewing → Chapter.

10 -

Nut

11 -

Subframe
