Volkswagen Golf Service & Repair Manual: Programming sliding sunroof adjustment control unit -J245-

Volkswagen Golf Service & Repair Manual / General body repairs, exterior / Sliding roof / Sliding sunroof / Programming sliding sunroof adjustment control unit -J245-

  Note

Programming sliding sunroof adjustment control unit -J245-

Establishing reference points of sliding sunroof motor
Ignition is switched on.

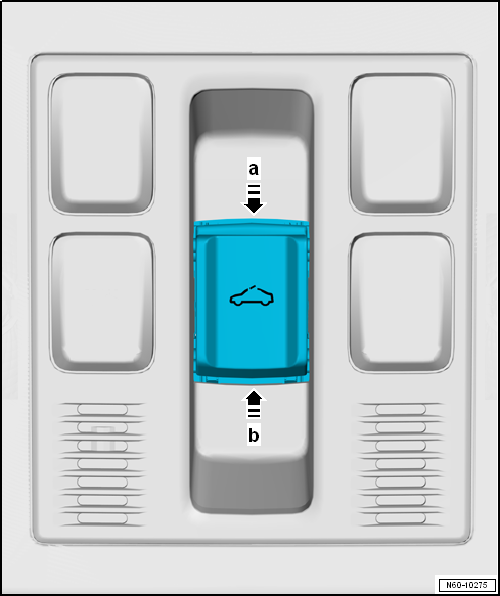

–  Pull button backwards -arrow a-, and hold it in this position during entire programming process (approx. 20 sec).
–  When establishing reference points, glass panel first closes and then moves approx. 200 mm towards the rear.
–  Once glass panel has closed again, the programming run is finished and rotary knob can be released.
