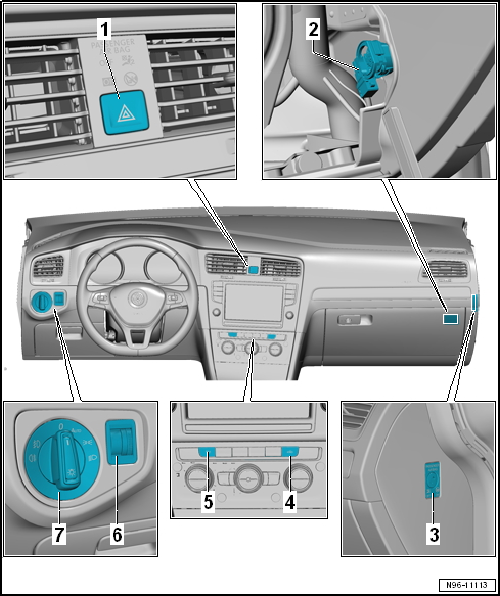

Overview of fitting locations – controls in dash panel

1 -	Hazard warning light switch -EX3-

Removing and installing → Chapter

2 -	Glove compartment light switch -E26-

Removing and installing → Chapter

3 -	Key operated switch for deactivating front passenger side airbag -E224-

Assembly overview → General body repairs, interior; Rep. gr.69

4 -	Button for seat heater on right -E654-

Integrated in operating and display unit:

Heater control unit -J65- OR

air conditioning system control unit -J301- OR

Climatronic control unit -J255-

Cannot be renewed separately if defective.

Removing and installing -J65-/-J301-/-J255- → Heating, air conditioning; Rep. gr.87.

5 -	Button for seat heater on left -E653-

Integrated in operating and display unit:

Heater control unit -J65- OR

air conditioning system control unit -J301- OR

Climatronic control unit -J255-

Cannot be renewed separately if defective.

Removing and installing -J65-/-J301-/-J255- → Heating, air conditioning; Rep. gr.87.

6 -	Headlight range control regulator -E102-

Depending on vehicle equipment

Removing and installing → Chapter

7 -	Rotary light switch -EX1-

Removing and installing → Chapter
