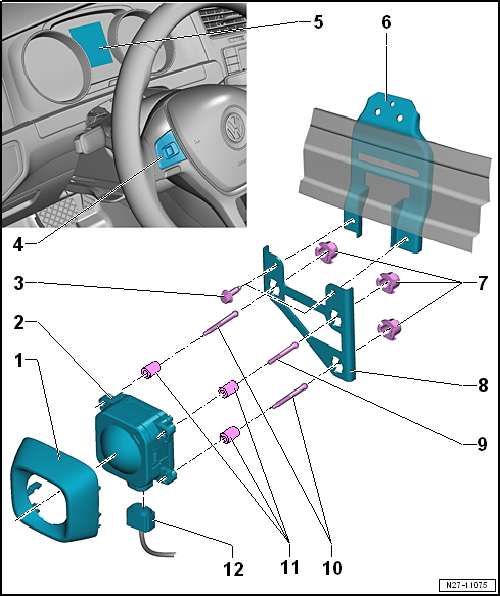

Overview of fitting locations – adaptive cruise control, variant 1

1 -  Trim for radar sensor
2 -  Adaptive cruise control unit -J428-
Removing and installing → Chapter
Calibrating → Chapter
3 -  Bolt
Qty. 2
Specified torque: 8 Nm
4 -  Adaptive cruise control button -E357-
Integrated in multifunction steering wheel
Removing and installing → Communication; Rep. gr.91.
5 -  Dash panel insert -KX2-
With control unit in dash panel insert -J285-.
Removing and installing → Chapter
6 -  Front bumper carrier
7 -  Quick-release fastener
Qty. 3
Renew
8 -  Retaining plate
Removing and installing → Chapter
9 -  Adjustment screw
Serves as a pivot
If adjustment is completed, stud setting must not be changed anymore.
Measure adjustment and adjust if necessary → Anchor
10 -  Adjustment screw
For adjusting adaptive cruise control unit -J428-
Qty. 2
Measure adjustment and adjust if necessary → Anchor
11 -  Fastener
Must always be renewed if studs → Item and → Item were unscrewed.
Renewing → Anchor
12 -  Electrical connector
Adaptive cruise control
...
