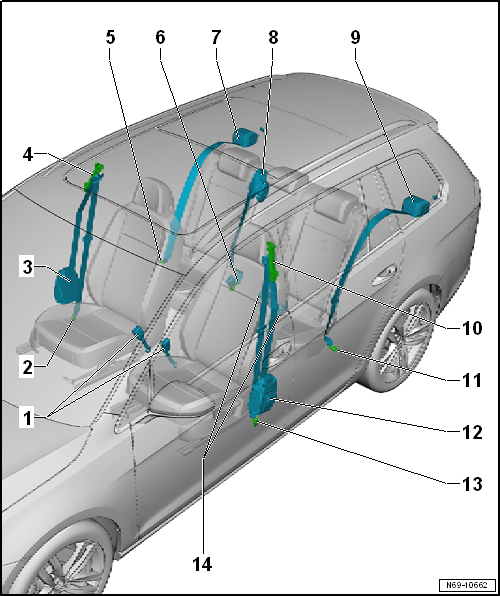

Overview of fitting locations - seat belts and anchorage points, estate

1 -	Front belt buckles

Assembly overview → Chapter
Removing and installing → Chapter

2 -	Front belt end anchor

Assembly overview → Chapter
Removing and installing → Chapter

3 -	Front three-point seat belt

With front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-
Assembly overview → Chapter
Removing and installing → Chapter

4 -	Belt height adjustment

Assembly overview → Chapter
Removing and installing → Chapter

5 -	Rear outer belt end fitting

Assembly overview → Chapter
Removing and installing → Chapter

6 -	Rear centre belt end fitting

Assembly overview → Chapter
Removing and installing → Chapter

7 -	Belt inertia reel

For rear outer three-point seat belt.
Assembly overview → Chapter
Removing and installing → Chapter

8 -	Belt inertia reel

For rear centre three-point seat belt
Assembly overview → Chapter
Removing and installing → Chapter

9 -	Belt inertia reel

For rear outer three-point seat belt
Assembly overview → Chapter.
Removing and installing → Chapter

10 -	Belt height adjustment

Assembly overview → Chapter
Removing and installing → Chapter

11 -	Rear outer belt end fitting

Assembly overview → Chapter.
Removing and installing → Chapter

12 -	Belt inertia reel

For front three-point seat belt
With driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854-
Assembly overview → Chapter.
Removing and installing → Chapter

13 -	Front belt end anchor

Assembly overview → Chapter
Removing and installing → Chapter

14 -	Rear belt buckle

Assembly overview → Chapter
Removing and installing → Chapter

Overview of fitting locations - seat belts and anchorage points, 4-door model

1 - Front belt buckles Assembly overview → Chapter. Removing and installing → Chapter 2 - Front belt end ancho ...

Assembly overview - front three-point seat belt, 2-door model

1 - Bolt If removed due to an accident with seat belt fastened, renew bolt. 20 Nm 2 - Belt end fitting Removing and installi ...
