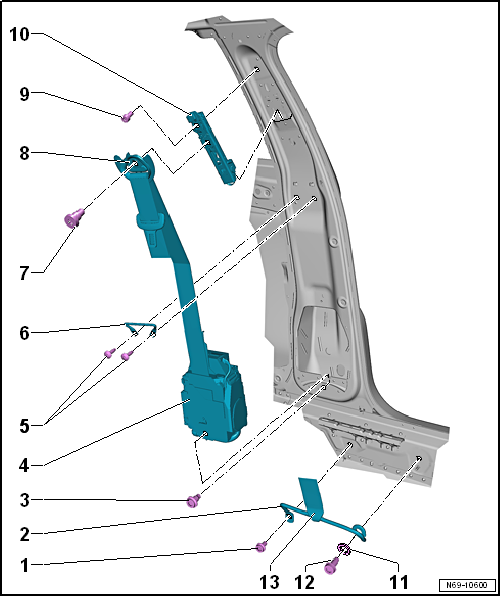

Assembly overview - front three-point seat belt, 2-door model

1 -

Bolt

If removed due to an accident with seat belt fastened, renew bolt.
20 Nm

2 -	Belt end fitting

Removing and installing → Chapter

3 -

Bolt

If removed due to an accident with seat belt fastened, renew bolt
40 Nm

4 -	Belt inertia reel

Driver side: with driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854-
Front passenger side: with front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-.
Removing and installing → Chapter
For vehicles with control unit for front left belt tensioner -J854- or control unit for front right belt tensioner -J855-, the airbag control unit -J234- must be adapted in → Guided fault finding after renewing the seat belt. If the → Guided fault finding is already running, then refresh test plan “15 - Airbag”.

5 -

Bolts

Qty. 2
4.5 Nm

6 -	Front belt guide

Removing and installing → Chapter
Observe correct installation position when installing.

7 -

Bolt

If removed due to an accident with seat belt fastened, renew bolt.
40 Nm

8 -	Belt guide fitting

Must move to vertical position or operated position on its own after bolt has been tightened

9 -

Bolt

If removed due to an accident with seat belt fastened, renew bolt.
20 Nm

10 -	Belt height adjustment

Removing and installing → Chapter
Always renew after belt tensioner has deployed with seat belt fastened

11 -

Washer

12 -

Bolt

If removed due to an accident with seat belt fastened, renew bolt
40 Nm
Start bolt by hand when installing

13 -	Retaining loop

Overview of fitting locations - seat belts and anchorage points, estate

1 - Front belt buckles Assembly overview → Chapter Removing and installing → Chapter 2 - Front belt end anchor ...

Assembly overview - front three-point seat belt, 4-door model and estate

1 - Bolt If removed due to an accident with seat belt fastened, renew bolt. 40 Nm 2 - Belt end fitting Removing and installi ...
