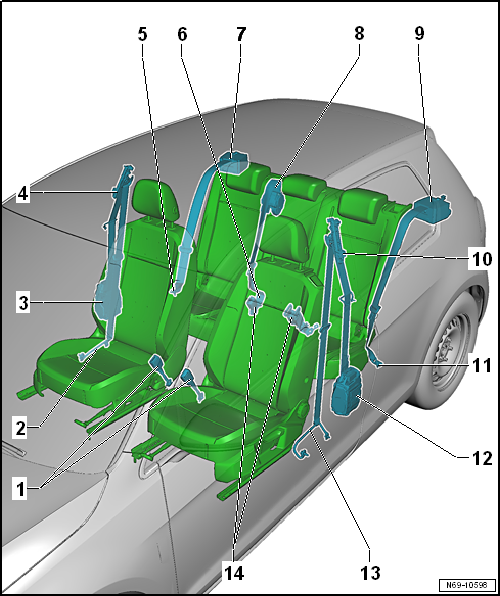

Overview of fitting locations - seat belts and anchorage points, 2-door model

1 -	Front belt buckles

Assembly overview → Chapter.
Removing and installing → Chapter

2 -	Front belt end anchor

Assembly overview → Chapter
Removing and installing → Chapter

3 -	Front three-point seat belt

With front passenger seat belt tensioner igniter 1 -N154- and control unit for front right belt tensioner -J855-
Assembly overview → Chapter
Removing and installing → Chapter

4 -	Belt height adjustment

Assembly overview → Chapter
Removing and installing → Chapter

5 -	Rear outer belt end fitting

Assembly overview → Chapter
Removing and installing → Chapter

6 -	Rear centre belt end fitting

Assembly overview → Chapter
Removing and installing → Chapter

7 -	Belt inertia reel

For rear outer three-point seat belt
Assembly overview → Chapter
Removing and installing → Chapter

8 -	Belt inertia reel

For rear centre three-point seat belt
Assembly overview → Chapter
Removing and installing → Chapter

9 -	Belt inertia reel

For rear outer three-point seat belt.
Assembly overview → Chapter
Removing and installing → Chapter

10 -	Belt height adjustment

Assembly overview → Chapter
Removing and installing → Chapter

11 -	Rear outer belt end fitting

Assembly overview → Chapter.
Removing and installing → Chapter

12 -	Belt inertia reel

For front three-point seat belt
With driver seat belt tensioner igniter 1 -N153- and control unit for front left belt tensioner -J854
Assembly overview → Chapter
Removing and installing → Chapter

13 -	Front belt end anchor

Assembly overview → Chapter
Removing and installing → Chapter

14 -	Rear belt buckle

Assembly overview → Chapter
Removing and installing → Chapter
