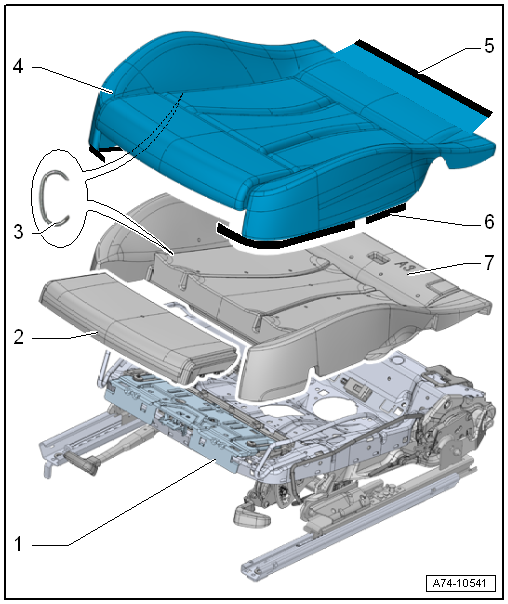

Assembly overview - cover and padding for seat pan, seat depth adjustment

1 -

Seat pan

Assembly overview → Chapter.

2 -	Seat padding

For seat depth adjustment
Allocation → Electronic Parts Catalogue
Removing and installing seat cover with seat padding → Chapter
Separating seat cover from seat padding → Chapter

3 -	Upholstery clip

For attaching seat cover to seat padding
Renew after removal
When installing, fit in same location using upholstery clip pliers -V.A.G 1634

4 -	Seat cover

Different equipment versions
Allocation → Electronic Parts Catalogue
Removing and installing seat cover with seat padding → Chapter
Separating seat cover from seat padding → Chapter
After installation, check that there are no creases in seat.

5 -

Channel

Sewn to seat cover
For attaching seat cover to upper frame of seat pan
Ensure it is properly seated in upper frame of seat pan

6 -

Channel

Sewn to seat cover
For attaching seat cover to upper frame of seat pan
Ensure it is properly seated in upper frame of seat pan

7 -	Seat padding

Allocation → Electronic Parts Catalogue
Removing and installing seat cover with seat padding → Chapter
Separating seat cover from seat padding → Chapter
