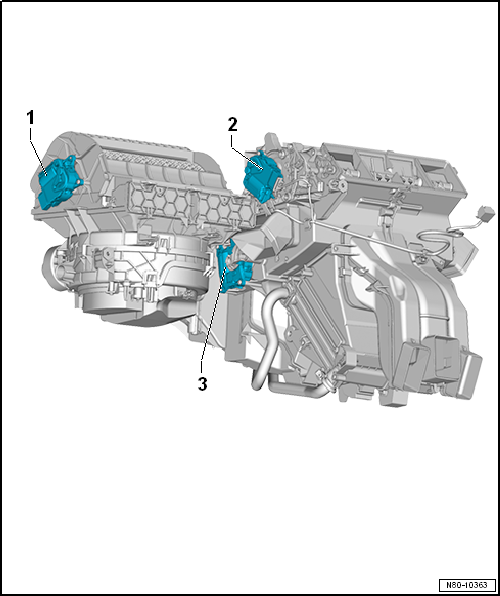

Overview of fitting locations - front control motors, RHD vehicles

1 -  Air recirculation flap control motor -V113-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
2 -  Air distribution flap control motor -V428-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.
3 -  Temperature flap control motor -V68-
Checking: with vehicle diagnostic tester
Removing and installing → Chapter
Renewing: initiate basic setting using vehicle diagnostic tester.


Removing and installing temperature flap control motor -V68- with potentiometer -G92-, LHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Removing and installing temperature flap control motor -V68- with potentiometer -G92-, RHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Removing and installing air recirculation flap control motor -V113-, LHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Removing and installing air recirculation flap control motor -V113-, RHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Removing and installing air distribution flap control motor -V428- with potentiometer -G645-, LHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Removing and installing air distribution flap control motor -V428- with potentiometer -G645-, RHD vehicles
Removal and installation are identical with procedure for vehicles with air conditioning system → Chapter.

Overview of fitting locations - front control motors, LHD vehicles
1 -  Temperature flap control motor -V68- Checking: with vehicle diagnostic tester Removing and installing → Chapter ...
