Volkswagen Golf Service & Repair Manual: Identification of Denso heater and air conditioning unit

Volkswagen Golf Service & Repair Manual / Heating, air conditioning / Technical data / Identification / Identification of Denso heater and air conditioning unit

Note

Pay attention to correct assignment when replacing components. The combination of different makes of component is not permitted → Electronic Parts Catalogue.

–	Remove left centre console trim in footwell → General body repairs, interior; Rep. gr.68.

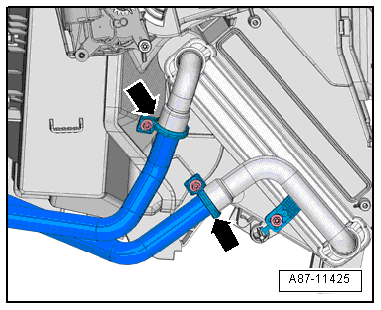

If the coolant pipes are arranged as shown in the illustration, the manufacturer of the heater and air conditioning unit is Denso.

Identification of Denso heater and air conditioning unit
