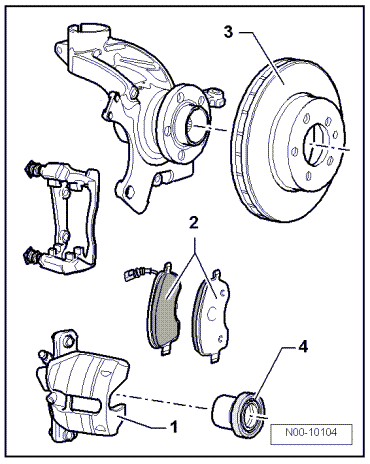

Volkswagen Golf Service & Repair Manual: Front brakes
Item |
PR No. |
|
1ZF |
1 |
Brake caliper |
FS
III (15”) |
2 |
Brake pad,
thickness |
mm |
12 |
Brake pad, wear limit
without backplate |
mm |
2 |
3 |
Brake disc |
Diameter,
mm |
276 |
Brake disc,
thickness |
mm |
24 |
Brake disc, wear limit |
mm |
21 |
4 |
Brake caliper,
piston |
Diameter, mm |
57 |
Item |
PR No. |
|
1ZE / 1ZP |
1 |
Brake caliper |
PC57 (15”) |
2 |
Brake pad,
thickness |
mm |
14 |
Brake pad, wear limit
without backplate |
mm |
2 |
3 |
Brake disc |
Diameter
in mm |
288 |
Brake disc,
thickness |
mm |
25 |
Brake disc, wear limit |
mm |
22 |
4 |
Brake caliper,
piston |
Diameter in mm |
57 |
Item |
PR No. |
|
1ZA / 1ZD / 1ZB |
1 |
Brake caliper |
PC57 (16”) |
2 |
Brake pad,
thickness |
mm |
14 |
Brake pad, wear limit
without backplate |
mm |
2 |
3 |
Brake disc |
Diameter
in mm |
312 |
Brake disc,
thickness |
mm |
25 |
Brake disc, wear limit |
mm |
22 |
4 |
Brake caliper,
piston |
Diameter in mm |
57 |
Item |
PR No. |
|
1LJ / 1LM |
1 |
Brake caliper |
C60
(17”) |
2 |
Brake pad,
thickness |
mm |
13 |
Brake pad, wear limit
without backplate |
mm |
2 |
3 |
Brake disc |
Diameter
in mm |
340 |
Brake disc,
thickness |
mm |
30 |
Brake disc, wear limit |
mm |
27 |
4 |
Brake caliper,
piston |
Diameter in mm |
60 |
Brake master cylinder and brake servo
Brake master cylinder, depending on engine type
Diameter
in mm
23.81 or 25.4
Brake servo (LHD), depending on ...
Rear brakes FNc-M38 (15”):
Item
PR No.
1KE / 1KV
1
Brake caliper
...
