Fitting locations overview - mobile online services, eGolf

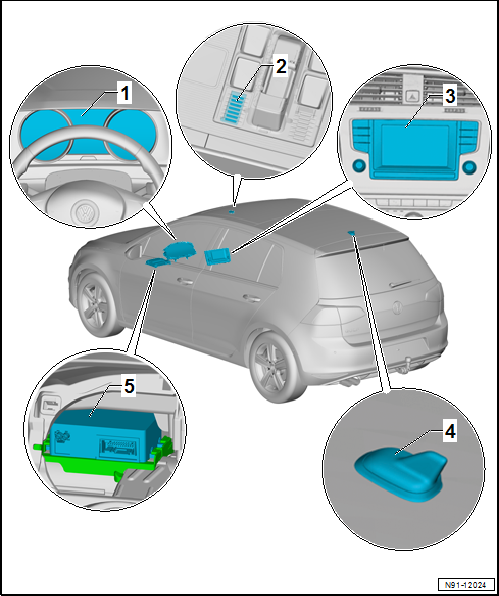

1 -  Control unit in dash panel insert -J285-
2 -  Telephone microphone -R38-
Installed in front section of roof console
Removing and installing → Chapter
3 -  Radio/RNS -RX1-
4 -  Roof aerial -RX5-
Removing and installing → Chapter
5 -  Emergency call module control unit and communication unit -J949-
Fitted behind dash panel insert
Removing and installing → Chapter
Removing and installing emergency call module control unit and communication unit -J949-
The emergency call module control unit and communication unit -J949- is integrated into control unit 1 for information electronics -J794-.
Removing and installing control unit 1 for information electronics -J794- → Chapter

Overview of fitting locations - mobile online services
1 -  Radio/RNS -RX1- 2 -  Telephone microphone -R38- Installed in front section of roof console Removing and insta ...

Removing and installing emergency call module control unit and communication unit -J949-, eGolf
The emergency call module control unit and communication unit -J949--1- is fitted behind the dash panel insert.     ...
