Volkswagen Golf Service & Repair Manual: Digital sound package control unit -J525-, vehicles with Dynaudio

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Sound system / Digital sound package control unit -J525-, vehicles with Dynaudio

Special tools and workshop equipment required

Torque wrench -V.A.G 1783-


Digital sound package control unit -J525-, vehicles with Dynaudio

Protective cap for wiring harness connector -VAS 6223/9-
If the control unit is replaced, select the Replace function of the respective control unit in Guided fault finding → Vehicle diagnostic tester.
Removing
–  Move front seat to rearmost using longitudinal adjustment mechanism and raise to highest position.
–  Switch off ignition and all electrical consumers, and remove ignition key.


Digital sound package control unit -J525-, vehicles with Dynaudio

–  Pull out spreader rivets -2-, slide cover -1- straight in direction of travel and remove it.


Digital sound package control unit -J525-, vehicles with Dynaudio

–  Release and unplug connector -3- on digital sound package control unit -J525--1-.


Digital sound package control unit -J525-, vehicles with Dynaudio

–  Push protective cap for cable connector -VAS 6223/9--1- onto connector of MOST bus -2-.


Digital sound package control unit -J525-, vehicles with Dynaudio

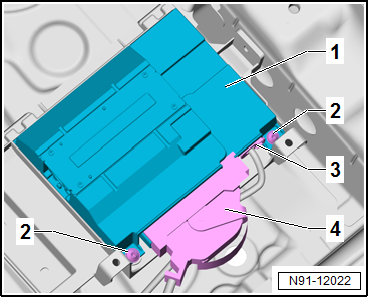

–  Release and unplug connector -4- on digital sound package control unit -J525--1-.
–  Remove bolts -2-.
–  Swing digital sound package control unit -J525--1- out of retainer.
Installing
Install in the reverse order of removal. When doing this, note the following:
  Note
When installing, ensure that the digital sound package control unit -J525- is seated correctly in the groove of the retainer.
When installing the cover, ensure that it is properly fitted on the front edge of the retainer.


Digital sound package control unit -J525-, vehicles with Dynaudio

Specified torques
Component Specified torque
Bolts -2- on retainer 3 Nm

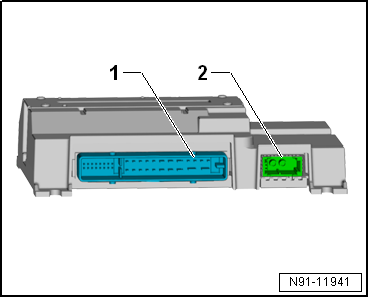

Electrical connectors on digital sound package control unit -J525-
1 -  Multi-pin connector, 38-pin
2 -  MOST bus, 2-pin


Digital sound package control unit -J525-, vehicles with Dynaudio
