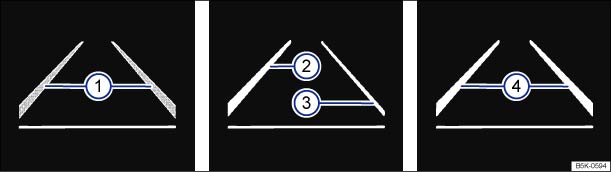

Fig. 176 In the instrument cluster display: lane departure warning system displays.
First read and observe the introductory information and safety warningsDisplays
Display fields :
Indicator lamps
Lit up | Possible cause | Solution |
---|---|---|
Lane Assist is switched on but not active. | The system cannot clearly detect the lane. Refer to . | |
Lane Assist is switched on and active. | – |
Several warning and indicator lamps will light up briefly as a functional check when the ignition is switched on. They will switch off after a few seconds.
Overview of the front passenger side
Fig. 10 Overview of the front passenger
side (left-hand drive vehicles). The controls are mirrored for right-hand drive
vehicles
Fig. 11 Dash panel near open front passenger
door (left-hand drive vehicles). The controls are mirrored for right-hand drive
vehicles
Key for and :
...
Assembly overview - suspension, multi-link suspension, front-wheel drive
1 -
Wheel bearing housing
Removing and installing
→ Chapter
2 -
Bonded rubber bush
Renewing
→ Chapter.
3 -
Bolt
Specified torque
͛ ...
Removing and installing light for front interior light -W1- with LED
Special tools and workshop equipment
required
Removal wedge -3409-
Note
The light used for the front interior light -WX1- and the
light front passenger r ...
