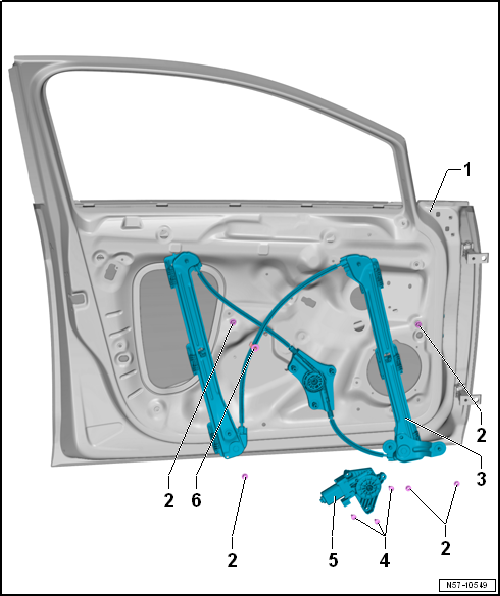

Volkswagen Golf Service & Repair Manual: Assembly overview - window regulator
| 1 - | Front door |
| 2 - | Hexagon nut |
- Qty. 5
- 6 Nm
| 3 - | Window regulator |
- Removing and installing → Chapter.
| 4 - | Bolt |
- Qty. 3
- 3 Nm
| 5 - | Window regulator motor -V14/V15- |
- Removing and installing → Chapter
| 6 - | Clip |
Assembly overview - door components
Note
Only the left side is shown. The right side is similar.
