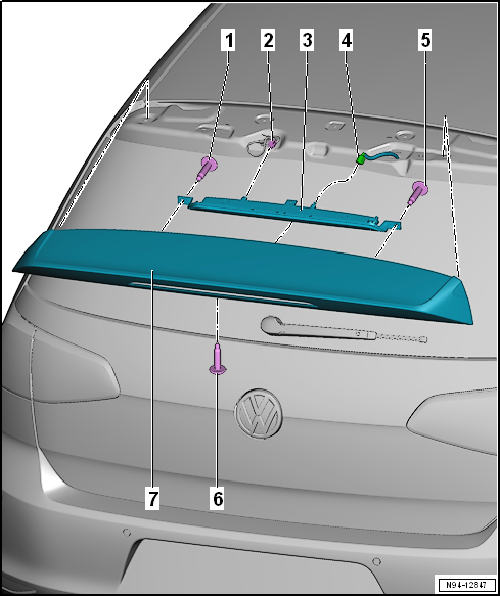

Assembly overview – high-level brake light, GTI, GTD and »R«

1 -  Bolt
Specified torque 2 Nm
2 -  Brake light connector
3 -  High-level brake light
With high-level brake light bulb -M25-.
Removing and installing → Chapter
4 -  Connection for washer fluid line
5 -  Bolt
Specified torque 2 Nm
6 -  Bolt
Specified torque 2 Nm
7 -  Roof spoiler
Removing and installing roof spoiler → General body repairs, exterior; Rep. gr.66
