Volkswagen Golf Service & Repair Manual: Assembly overview – Brake system pressure accumulator -VX70-, RHD vehicles

Volkswagen Golf Service & Repair Manual / Brake system (hybrid) / Brakes, hydraulics, regulator, servo / Brake servo and brake master cylinder / Assembly overview – Brake system pressure accumulator -VX70-, RHD vehicles

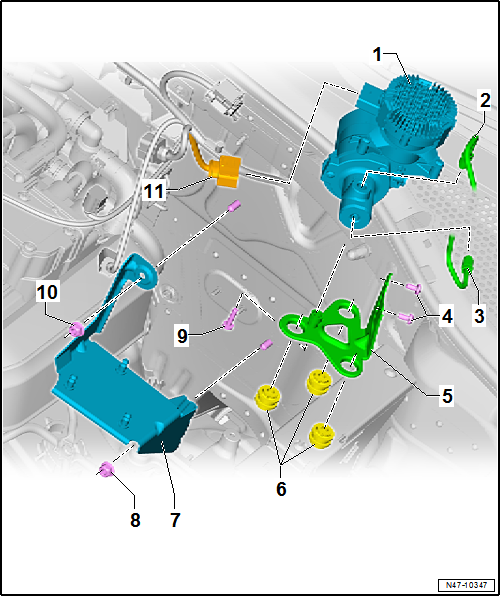

Assembly overview – Brake system pressure accumulator -VX70-, RHD vehicles

1 -  Brake system pressure accumulator -VX70-
Removing and installing → Chapter
2 -  Brake line
To hydraulic unit
With thread M12 x 1
14 Nm
3 -  Brake line
To brake master cylinder
With thread M12 x 1
14 Nm
4 -  Bolt
8 Nm
5 -  Bracket
Check for secure seating after installing
6 -  Rubber damper
Do not press rubber dampers out of bracket when installing bracket.
7 -  Bracket
8 -  Nut
20 Nm
9 -  Bolt
8 Nm
10 -  Nut
20 Nm
11 -  Electrical connector
Assembly overview – Brake system pressure accumulator -VX70-, LHD vehicles
1 -  Brake system pressure accumulator -VX70- Removing and installing → Chapter 2 -  Bracket Check ...

Removing and installing brake master cylinder, LHD vehicles
Special tools and workshop equipment required     Torque wrench -V.A.G 1331-   ...
