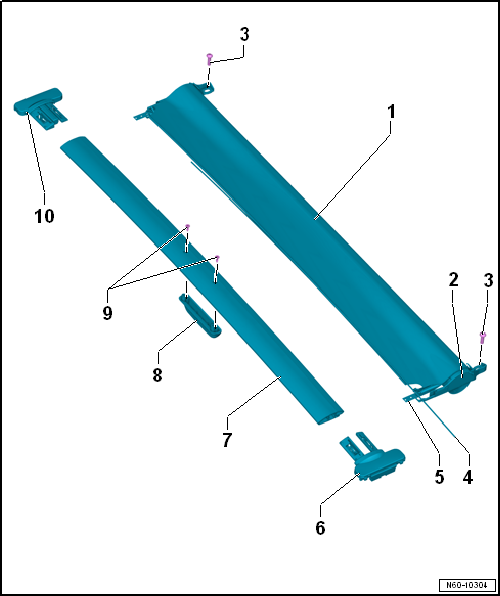

Assembly overview - sunroof roller blind

1 -	Sunroof roller blind

Removing and installing → Chapter.

2 -

Mounting

For sunroof roller blind fabric

3 -

Bolt

Qty. 2
2 Nm

4 -	Tension wire

For securing the fabric in the pulling rib

5 -

Carrier

6 -

Slide

7 -	Pulling rib

Removing and installing → Anchor

8 -

Handle

9 -

Bolt

For the handle
Qty. 2
1 Nm

10 -

Slide

Assembly overview - sliding sunroof
