Volkswagen Golf Service & Repair Manual: Assembly overview - sun visors

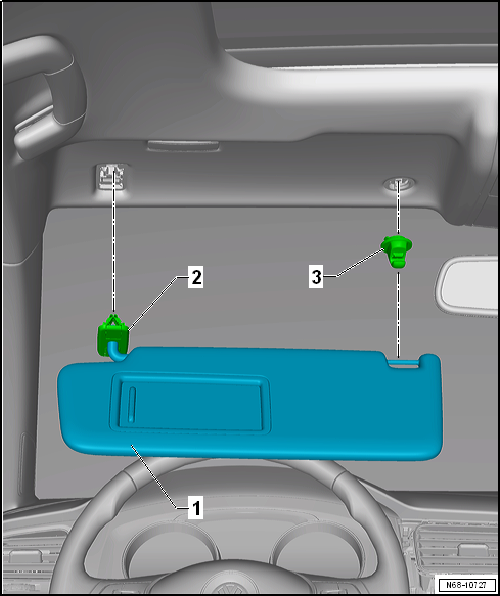

Note| The assembly overview is shown for the driver side. The assembly overview for the front passenger side is analogous. |
| 1 - | Sun visor |
- Removing and installing → Chapter
| 2 - | Sun visor mount |
- Cannot be separated from sun visor
| 3 - | Centre mount |
- For sun visor
- Removing and installing → Chapter
Assembly overview- net partition
1 -
Net partition
Removing and installing
→ Chapter
2 -
Bolt
4.5 Nm
3 -
Remove fitting e ...
Assembly overview - roof grab handle
Note
The assembly overview is shown for the front left roof grab
handle. The assembly overview for the remaining roof grab handle is
analogous.
1 -&nb ...
