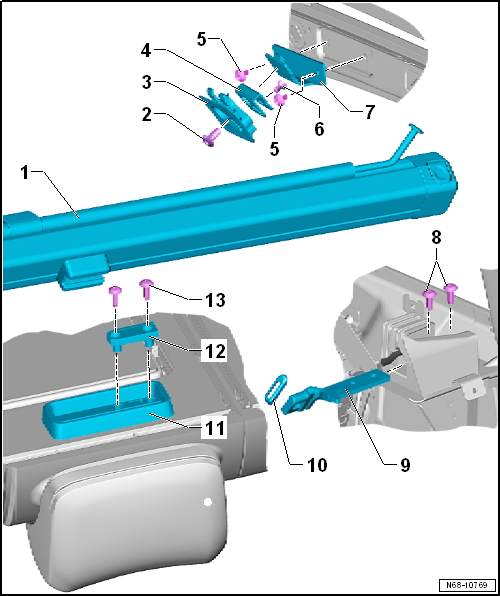

Assembly overview- net partition

1 -	Net partition

Removing and installing → Chapter

2 -

Bolt

4.5 Nm

3 -	Remove fitting eye trim

Allocation → Electronic Parts Catalogue
Removing and installing → Chapter

4 -	Eyelet for net partition

Removing and installing → Chapter

5 -

Bolt

Qty. 2
4.5 Nm

6 -

Bolt

1.5 Nm

7 -	Bracket for eyelet

Allocation → Electronic Parts Catalogue
Removing

–	Remove moulded headliner → Chapter.

–	Unscrew bolts -5- and remove bracket for eyelet.

8 -

Bolt

→ Chapter „Assembly overview - rear outer three-point seat belt“

9 -	Bracket for net partition

Removing and installing → Chapter

10 -	Rubber grommet

Slide over bracket for net partition, and insert in luggage compartment side trim

11 -

Mounting

On right rear seat backrest (2/3)
Removing and installing → Chapter

12 -

Insert

Removing and installing → Chapter

13 -

Bolt

Qty. 2
8 Nm

Note

Clean remnants of locking fluid from thread with a wire brush. Then, fit bolts using locking fluid ( → Electronic Parts Catalogue ).
Also clean locking fluid from threaded holes (e.g. using thread chaser).
