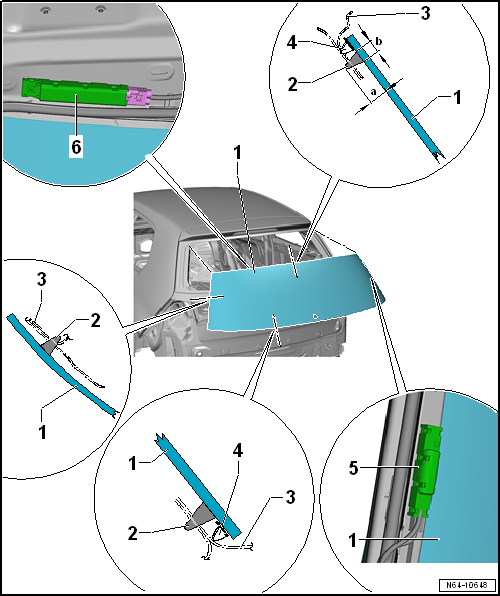

Assembly overview - rear window

1 -	Rear window

Removing and installing → Chapter

2 -	PUR adhesive sealant

Cross section of bead: -width b- = 7 mm, -height a- = 10 mm (including precoating, residual material on window glass and window flange).
Minimum curing period → Chapter.

3 -	Body flange

4 -

Spacer

5 -	Connection for rear window heating

6 -	Aerial connection

Rear window

...

Removing and installing rear window

Note The removal of a bonded window is described using the Removal kit for flush bonded windows -V.A.G 1474 A-. ...
