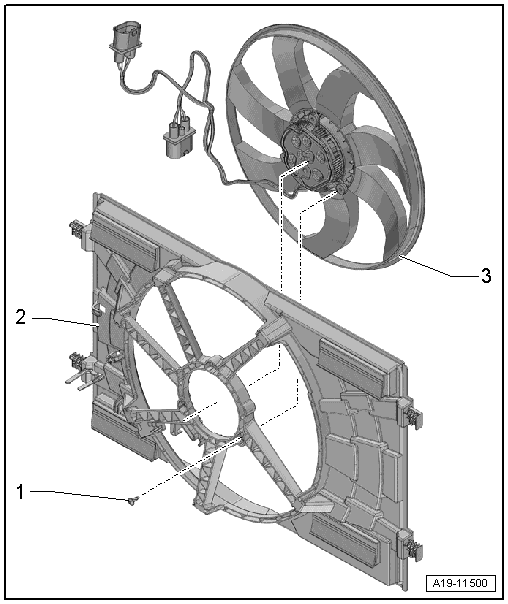

Assembly overview - radiator cowl and radiator fan

1 -  Bolt
5 Nm
2 -  Radiator cowl
Removing and installing → Chapter
3 -  Radiator fan -V7-
Removing and installing → Chapter
Assembly overview - radiator and radiator fan
1 -  Radiator Removing and installing → Chapter Change coolant after renewing. 2 -  Coolant hose ...

Removing and installing radiator, Golf, Golf SV, Golf Estate
  Note Radiator and water radiator for charge air cooling circuit are removed together. Removing –  ...
