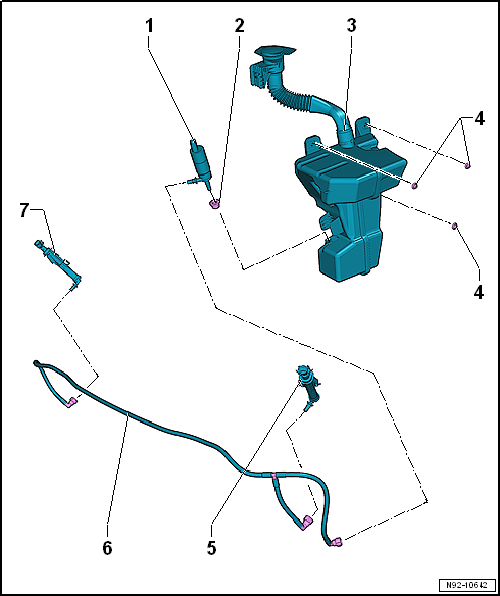

Assembly overview - headlight washer system

1 -	Headlight washer system pump -V11-

Removing and installing → Chapter

2 -	Sealing grommet

Renew if damaged.

3 -	Washer fluid reservoir

Removing and installing → Chapter

4 -

Nut

Qty. 3

Specified torque: 8 Nm

5 -	Left spray jet

Removing and installing → Chapter

6 -	Water hose

7 -	Right spray jet

Removing and installing → Chapter
