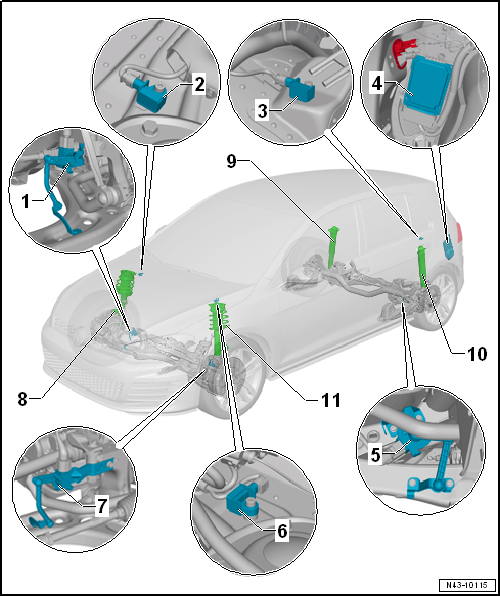

Assembly overview - electronically controlled damping system, multi-link suspension, saloon

1 -  Front right vehicle lever sender -G289-
Removing and installing → Chapter
2 -  Front right body acceleration sender -G342-
Removing and installing → Chapter
3 -  Rear left body acceleration sender -G699-
Location: on left suspension strut dome behind left luggage compartment side trim.
Removing and installing → Chapter
4 -  Electronically controlled damping control unit -J250-
Removing and installing → Chapter
Location: electronically controlled damping control unit -J250- is installed behind left luggage compartment side trim.
Function Replace control unit must be performed with → Vehicle diagnostic tester if electronically controlled damping control unit -J250- is renewed.
If the reference position has been re-adapted, the front camera for driver assist systems must be recalibrated on vehicles with lane departure warning function → Chapter „Calibrating front camera for driver assist systems“.
5 -  Rear left vehicle level sender -G76-
Removing and installing, front-wheel drive → Chapter
Removing and installing, four-wheel drive → Chapter
6 -  Front left body acceleration sender -G341-
Removing and installing → Chapter
7 -  Front left vehicle level sender -G78-
Removing and installing → Chapter
8 -  Shock absorber with front right shock absorber damper adjustment valve -N337-
Removing and installing suspension strut → Chapter.
Repairing suspension strut → Chapter.
9 -  Shock absorber with rear right shock absorber damper adjustment valve -N339-.
Removing and installing shock absorber → Chapter.
Repairing shock absorber → Chapter.
10 -  Shock absorber with rear left shock absorber damper adjustment valve -N338-.
Removing and installing shock absorber → Chapter.
Repairing shock absorber → Chapter.
11 -  Shock absorber with front left shock absorber damper adjustment valve -N336-
Removing and installing suspension strut → Chapter.
Repairing suspension strut → Chapter.
