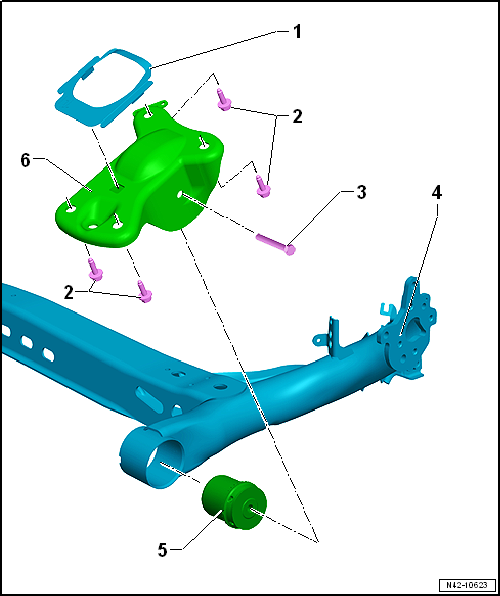

Assembly overview - axle beam

1 -

Cover

2 -

Bolt

Renew after removing

50 Nm +45°

3 -

Bolt

Renew after removing

Tighten in unladen state → Chapter.

70 Nm +360°

4 -

Axle beam

Removing and installing → Chapter

5 -	Bonded rubber bush

Note correct installation position

Renewing → Chapter.

6 -	Mounting bracket

Axle beam

...

Renewing bonded rubber bush for axle beam
