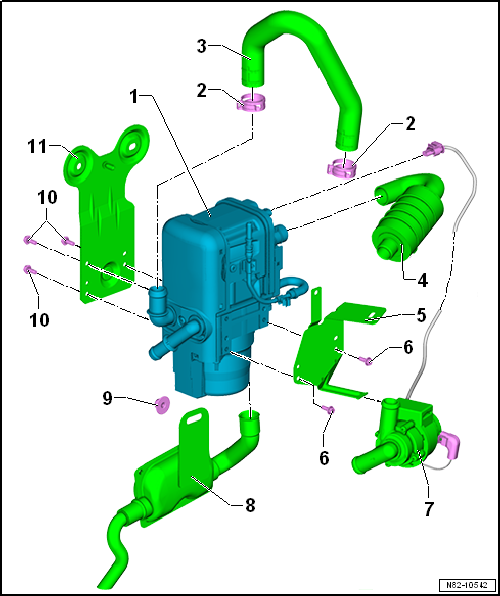

Assembly overview - auxiliary heater attachments

1 -	Auxiliary heater

2 -	Clamping piece

3 -	Coolant hose

4 -	Air intake silencer

Removing and installing → Chapter

5 -	Bracket for circulation pump -V55- and air intake silencer

6 -

Bolts

For bracket for circulation pump -V55- and air intake silencer

8 Nm

7 -	Circulation pump -V55-

Removing and installing → Chapter

8 -	Exhaust system

Removing and installing → Chapter

9 -

Nut

For exhaust silencer

20 Nm

10 -

Bolts

8 Nm

11 -	Bracket for auxiliary heater

Removing and installing → Chapter.
