Assembly overview - assembly mountings, Golf 2013 ►, Golf Estate 2014 ►, Golf SV 2015 ►, Passat 2015 ►, Passat Estate 2015 ►

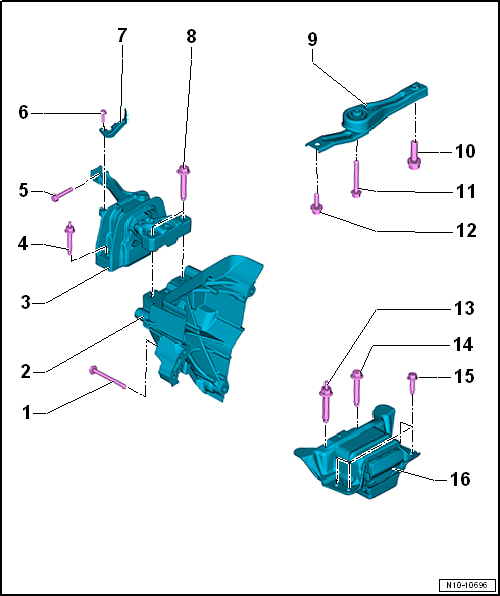

Assembly overview - assembly mountings

1 -

Bolt

Renew

Tightening sequence → Rep. gr.10

2 -	Engine support

Specified torque and tightening sequence → Rep. gr.10

3 -	Engine mounting

With support arm.

Removing and installing → Rep. gr.10

4 -

Bolt

Renewing → Rep. gr.10

5 -

Bolt

Renewing → Rep. gr.10

6 -

Bolt

Specified torque → Rep. gr.10

7 -

Bracket

8 -

Bolt

Renew

Specified torque → Rep. gr.10

9 -	Pendulum support

Removing and installing → Running gear, axles, steering; Rep. gr.40

10 -

Bolt

Renew

Specified torque and tightening sequence → Rep. gr.10

11 -

Bolt

Renew

Specified torque and tightening sequence → Rep. gr.10

12 -

Bolts

Renew

Specified torque and tightening sequence → Rep. gr.10

13 -

Bolt

Renew

Specified torque → Rep. gr.10

14 -

Bolt

Renew

Specified torque → Rep. gr.10

15 -

Bolt

Renew

Specified torque → Rep. gr.10

16 -	Gearbox mounting

With support arm.

Removing and installing → Rep. gr.10

Gearbox bracket to gearbox:

Renew bolts after each removal.

Torque setting 40 Nm and then turn 90° further
