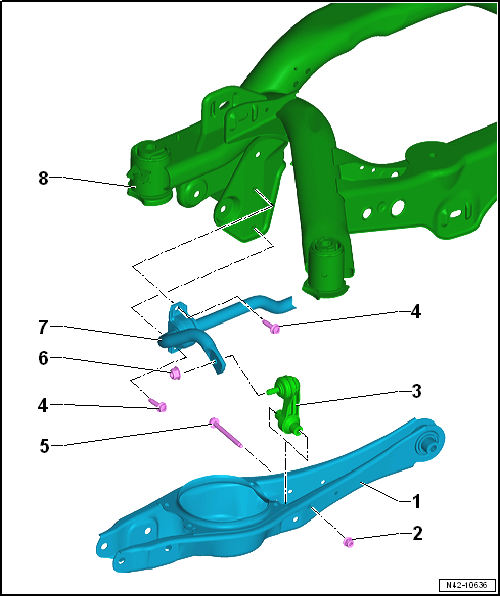

Assembly overview - anti-roll bar, multi-link suspension, four-wheel drive

1 -  Lower transverse link
2 -  Nut
Renew after removing
20 Nm +180°
3 -  Coupling rod
Removing and installing → Chapter
4 -  Bolt
Tighten evenly.
Renew after removing
20 Nm +90°
5 -  Bolt
Renew after removing
6 -  Nut
When tightening, counterhold at multi-point socket of coupling rod
55 Nm
7 -  Anti-roll bar
With rubber bushes
Removing and installing → Chapter
8 -  Subframe
Assembly overview - anti-roll bar, multi-link suspension, front-wheel drive
1 -  Lower transverse link 2 -  Nut Renew after removing 20 Nm +180° 3 -  Cou ...

Removing and installing anti-roll bar
Special tools and workshop equipment required     Torque wrench -V.A.G 1331- Re ...
