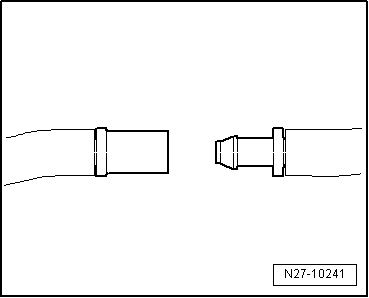

  Pull the two coupling sections apart (no securing device) to loosen the connection.
–  To secure the connection, push the two coupling sections together, until you hear and feel them engage.


Windscreen and rear window washer system

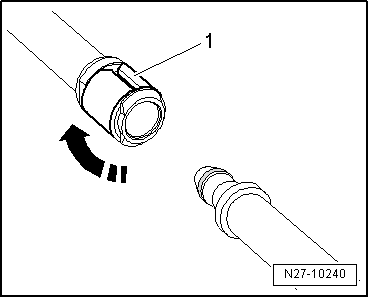

–  To loosen the connection, rotate the lock ring -1- through 90° -arrow- and pull off the hose connection.
–  To secure the connection, push on the hose connection and rotate the lock ring -1--arrow- until it engages.


Windscreen and rear window washer system

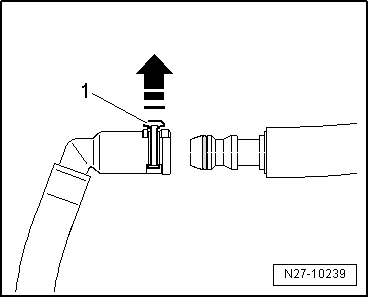

–  To loosen the connection, pull up the lock ring -1- by approx. 1 mm -arrow- and pull off the hose connection.
–  To secure connection, attach hose connection and press in clip -1- until it engages.
–  To secure connection, attach hose connection and press in clip -1- until it engages.


Windscreen and rear window washer system

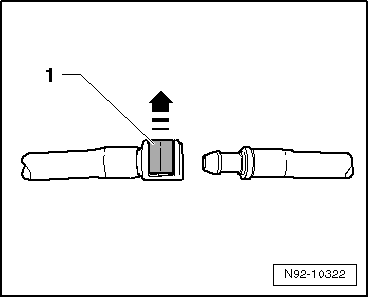

–  To loosen the connection, pull up the lock ring -1--arrow- and pull off the hose connection.
–  To secure connection, attach hose connection and press in clip -1- until it engages.


Windscreen and rear window washer system

Washer fluid line hose couplings
...

Headlight washer system
–  To loosen the connection, push the lock ring -1--arrow- and pull off the hose connection. –  To secure the connecti ...
