Volkswagen Golf Service & Repair Manual: Undercoating, additional protected areas on CNG-powered vehicles

Volkswagen Golf Service & Repair Manual / Vechile- specific paint information / Undercoating / Undercoating, additional protected areas on CNG-powered vehicles

  Note
Undercoating (stone-chipping protection) applied during repair work must be identical in appearance and thickness to the original undercoating.
Water drainage holes must remain clear.
All threaded studs and welded nuts with metric threads as well as all other studs and contact surfaces for assembly must be functional following the application of the undercoating.

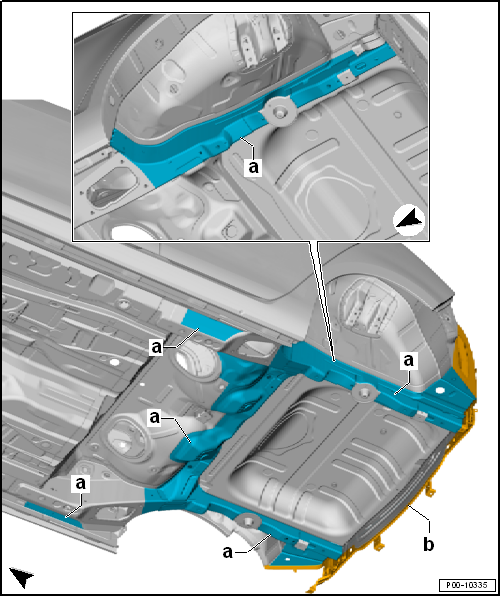

Undercoating, rear, additional for CNG (gas-powered vehicle)

Undercoating, additional protected areas on CNG-powered vehicles

a -  Undercoating
Coat thickness: 0.3 mm
b -  Undercoating
Coat thickness: 0.5 mm
Undercoated areas
