Volkswagen Golf Service & Repair Manual: Specified torques for gearbox

petrol engine, 1.4 l natural gas engine:

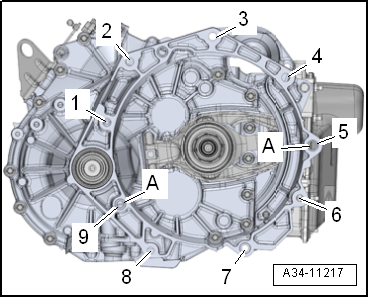

Specified torques for gearbox

Item Bolt Nm
1, 5, 9 M12x70 80
2, 4 M12x50 80
3 1),2) M12x165 80
6, 7, 8 M10x55 40
A Dowel sleeves for centring
1) Also secures starter
2) Centre hex stud


Gearbox to 1.4 l, 1.6 l and 2.0 l diesel engine, 1.8 l petrol engine:

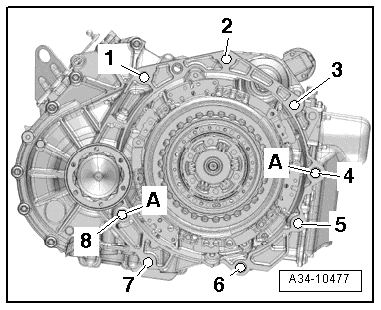

Specified torques for gearbox

Item Bolt Nm
1, 33) M12x55 80
2 1),2) M12x150 80
4, 8 M12x65 80
5, 6, 7 M10x55 40
A Dowel sleeves for centring
1) Also secures starter
2) Centre hex stud
3) With insert tool T10179 or T10509: »65 Nm«


Component Specified torque
Wiring retainer to gearbox cover. 10 Nm
Flange shaft to gearbox 30 Nm

Specified torques for assembly mountings → Chapter

Installing gearbox
Install in reverse order of removal, observing the following:   Note Renew bolts which are tightened by turning through a sp ...

Assembly mountings
...
