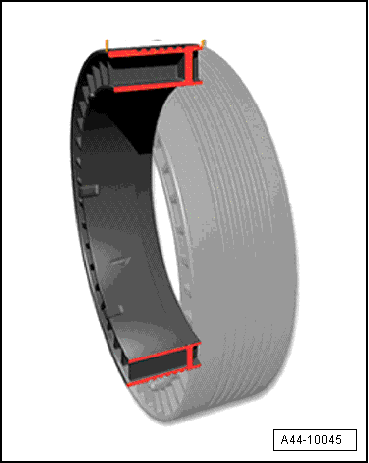

Dimensions

Overview of important dimensions:

Codes/designations

Example: 90-500(35) CLI A 1 876107

90 -	Nominal width in millimetres

500 -

Nominal diameter in millimetres

35 -	Height in millimetres

CLI -

Support ring versions: CLI = clip support ring / FL = standard support ring

A -	Construction type index, asymmetrical. Indication of tyre with run-flat capability (PAX)

1 -	Support ring version

876107 -

CAI, international article code

Run-flat tyre system PAX, support ring

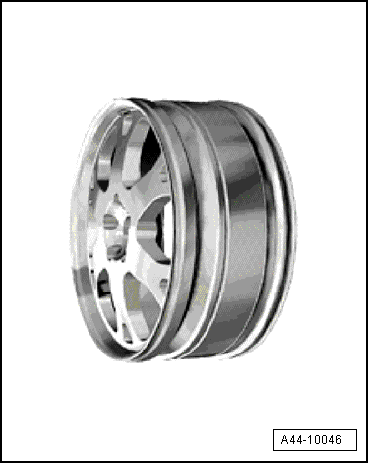

Run-flat tyre system PAX, dimensions and designations on PAX wheel rims

Example: 235 x 500 A - 5 - 41

235 -

Nominal width in millimetres

x -	Single-unit

500 -

Nominal diameter of standardised rim seat in millimetres

A -	Asymmetrical

5 -	Number of wheel bolt holes

41 -	Rim offset in millimetres

Run-flat tyre system PAX, dimensions and designations on PAX wheel rims

Run-flat tyre system PAX

...

Run-flat tyre system PAX, checking support ring

As with tyres, the support ring does not always need to be renewed after driving with a flat tyre. If the fol ...
