Special tools and workshop equipment required

Puller -T10369-

Removing

Caution

Risk of damage to wiper shafts.

There is a risk of damage to the wiper shafts when trying to release the wiper arms without using the puller -T10369/1-.

Note

If it is necessary for the wiper motor to run during the working procedure, the bonnet must be closed, as otherwise the power supply to the wiper motor will be interrupted.

The removal and installation procedures are described for LHD vehicles. Removal and installation for RHD vehicles are similar.

–	Move wipers to service position → Chapter.

Removing and installing wiper arms

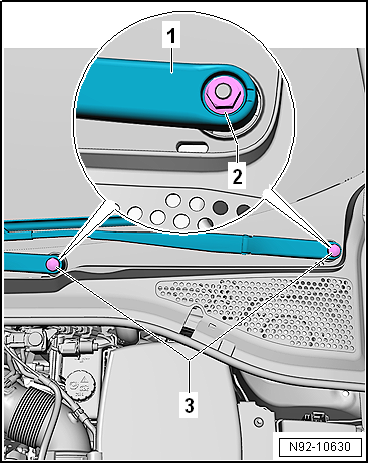

–	Using a screwdriver, lever caps -3- off wiper arms -1-.

–	Loosen nuts -2- a few turns.

Removing and installing wiper arms

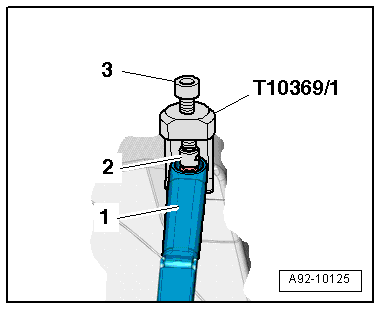

–	Fit puller -T10369/1- to wiper arm -1- as shown in illustration.

–	Fit thrust piece -2- to wiper shaft.

–	Turn bolt -3- clockwise until wiper arm -1- has been pulled off wiper shaft.

–	Unscrew nut completely and remove wiper arm -1-.

Installing

Install in the reverse order of removal, observing the following:

Caution

Risk of damage to the vehicle body.

Wiper arms for driver and front passenger sides each have a different length.

–	Adjust wiper arms → Chapter.

Removing and installing wiper arms

Removing and installing wiper blade

Removing – Move wipers to service position → Chapter. Caution ...

Adjusting wiper arms

Special tools and workshop equipment required Torque wrench -V.A.G 1331- Note ...
