Volkswagen Golf Service & Repair Manual: Removing and installing subwoofer -R211-
| The subwoofer -R211- is located in the spare wheel well. |
| – |
Switch off ignition and all electrical consumers, and remove
ignition key. |
| – |
Take out luggage compartment floor. |
|
|
|
| – |

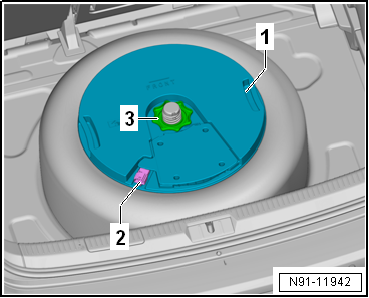

Release and detach connector -2-
on subwoofer -R211--1-. |
| – |
Remove bolt -3- from subwoofer
-R211--1-. |
| – |
Lift out subwoofer -R211--1-. |
| Install in the reverse order of removal. When doing this,
note the following: |
|
|
|
| Component |
Specified torque |
| Bolt -3-
on subwoofer -R211- |
3 Nm |
Rear left bass loudspeakers -R15-/rear right bass
loudspeakers -R17- are located in rear doors (bottom).
Note
Removal and installation ...
