  Note
Removal and installation is described for the front left speed sensor. Removal and installation of the front right speed sensor is analogous.
Removing
–  Raise vehicle.

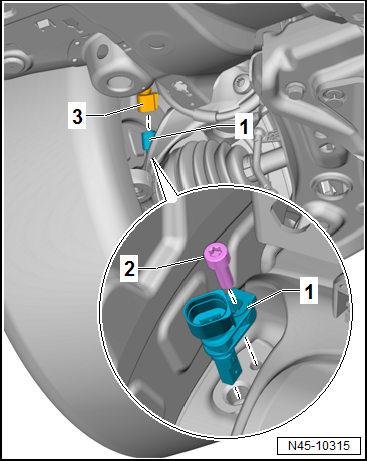

–  Disconnect connector -3- from front left speed sensor -G47--1-.
–  Unscrew bolt -2-, and pull front left speed sensor -G47--1- out of wheel bearing housing.
Installing
Install in reverse order of removal, observing the following:
–  Clean inside surface of hole before inserting speed sensor.
–  Coat speed sensor all-round with high-temperature paste G 052 112 A3.
Specified torque
→ Chapter „Assembly overview - speed sensor on front axle“
