Volkswagen Golf Service & Repair Manual: Removing and installing rear bass loudspeakers -R15-/-R17-, 2-door

Volkswagen Golf Service & Repair Manual / Communication / Infotainment / Sound system / Removing and installing rear bass loudspeakers -R15-/-R17-, 2-door

Rear left bass loudspeakers -R15-/rear right bass loudspeakers -R17- are located in side panel.
  Note
Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.
Removing
–  Switch off ignition and all electrical consumers, and remove ignition key.
–  Remove side trim panel → General body repairs, interior; Rep. gr.70.

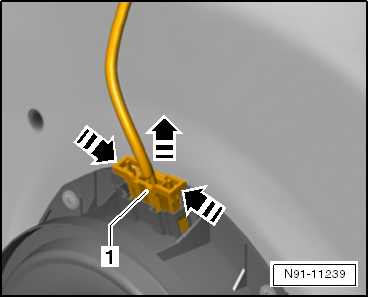

–  Release locking mechanism of connector on rear left bass loudspeaker -R15- in direction of arrow.
–  Pull connector -1- out.


Removing and installing rear bass loudspeakers -R15-/-R17-, 2-door

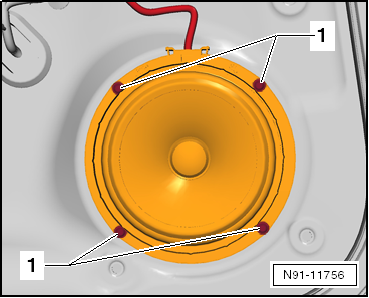

–  Drill out rivet -1- with a suitable drill bit.
–  Remove front left bass loudspeaker -R15-.
  Caution
It is essential that all swarf be removed from the door because otherwise corrosion damage will occur.
Immediately rectify any paintwork damage caused when drilling out the rivets.
Installing
Install in the reverse order of removal. When doing this, note the following:
  Note
When installing loudspeaker, secure it with special blind rivets (note part number).


Removing and installing rear bass loudspeakers -R15-/-R17-, 2-door

Removing and installing front bass loudspeakers -R21-/-R23
The front left bass loudspeaker -R21- and the front right bass loudspeaker -R23- are located in the front doors (bottom).   Note Removal ...

Removing and installing rear bass loudspeakers -R15-/-R17-, 4-door
Rear left bass loudspeakers -R15-/rear right bass loudspeakers -R17- are located in rear doors (bottom).   Note Removal and installation ...
