Volkswagen Golf Service & Repair Manual: Removing and installing output module 2 for headlights, »R«

Volkswagen Golf Service & Repair Manual / Electrical system / Lights, lamps, switches outside / Headlight / Removing and installing output module 2 for headlights, »R«

WARNING

Risk of death due to high voltage! Risk of injury and environmental pollution!

Observe operation and safety notes for gas discharge bulbs → Chapter.

It is essential that the battery earth cable is disconnected before any work on parts of the gas discharge headlight is performed. The parts are marked with a yellow high voltage symbol.

Note

Removal and installation are described for the left side. Removal and installation on the right side are carried out in the same way.

Removing

–	Remove headlight → Chapter.

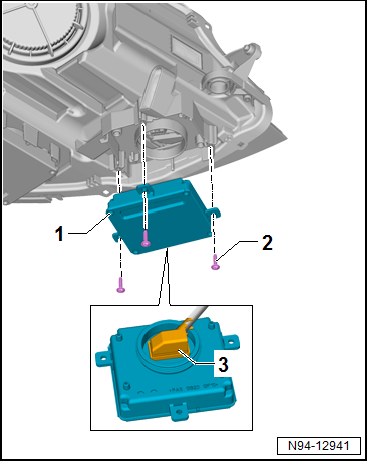

–	Remove bolts -2-.

–	Pull output module 2 for left headlight -J892--1- off headlight.

–	Disconnect electrical connector -3-.

–	Remove control unit.

Installing

Install in the reverse order of removal, observing the following:

Caution

Make sure seal is correctly seated when installing the gas discharge bulb control unit. The ingress of water will lead to permanent damage to the headlight.

–	Check seal between control unit and headlight for damage.

Specified torques

→ Chapter „Assembly overview – gas discharge headlight with dynamic high beam control and LED daytime running light, R“
