Note

If an LED number plate light is faulty, the entire number plate light must be renewed.

Removing

–	Turn light switch to “0” position.

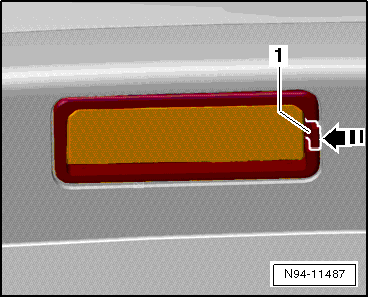

–	Press retaining lug in -direction of arrow- and take number plate light downwards out of the bumper cover.

Removing and installing number plate light -X4-/-X5-

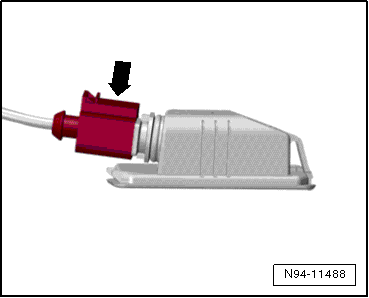

–	Release connector -arrow- and disconnect.

Installing

Install in the reverse order of removal, observing the following:

Note

Insert number plate light into bumper cover so that connector is oriented to left side of vehicle.

–	Test functionality.
